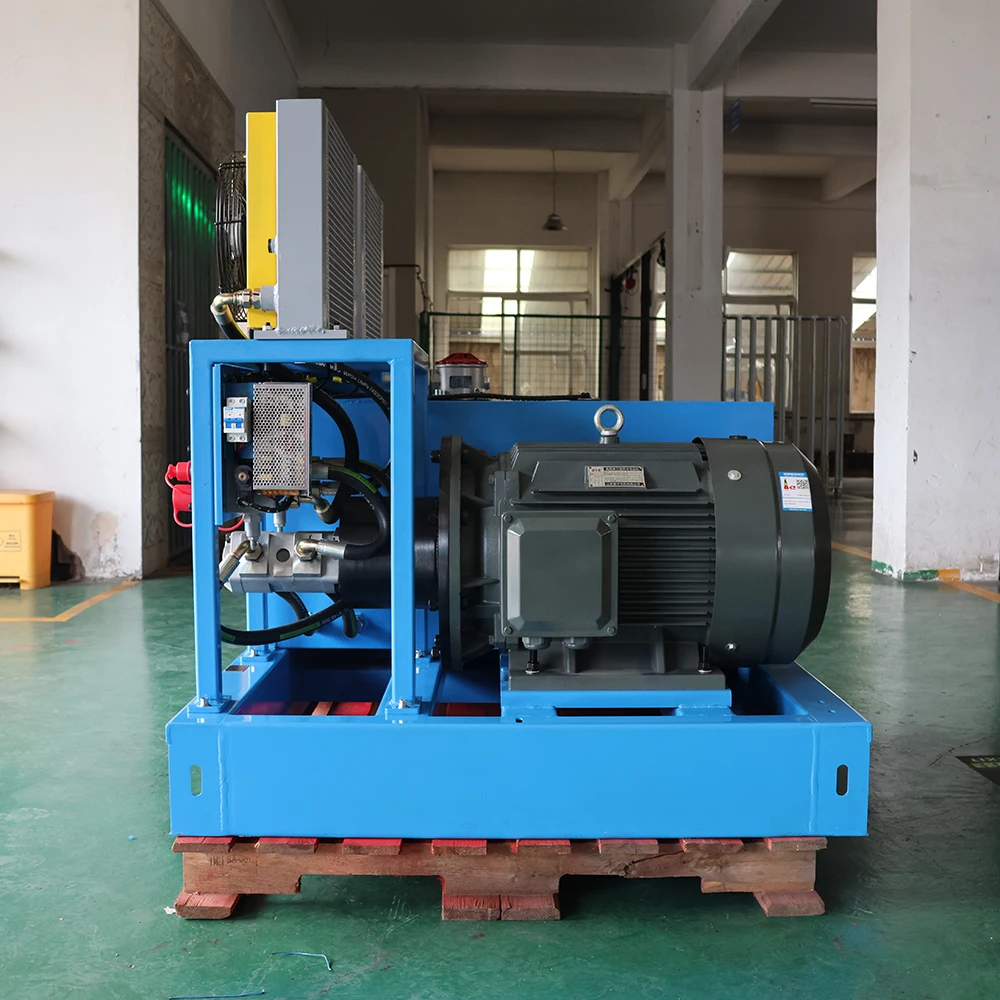

Hydraulic power unit non-standard EHYP45

CNSELAM EHYP series hydraulic power units are hydraulic system that connects the hydraulic gear pump and the driving device through hydraulic hose. It can achieve various prescribed actions and provide hydraulic power for the operation of machinery in large and medium-sized industrial production.

Model	EHYP45
Hydraulic flow rate(L/min)	2*60-80
Pressure(bar)	180
Power(kW)	45
Hydraulic tank(L)	320
Weight（kg）	600

1.Product Description

CNSELAM electric hydraulic power unit provides a convenient and reliable power source for various hydraulic tools.It has the characteristics of high efficiency,small size,light weight and strong power.Only one hydraulic power unit is needed to connect and drive various of hydraulic tools,such as hydraulic breakers,hydraulic disc cutting saw,hydraulic chainsaw,hydraulic pumps,etc.,which are able to complete crushing,cutting,drilling,coring,drainage and other various tasks.

2.Fields of product application

The products can be used in municipal emergency repair and drainage,urban flood control and drainage,inspection well and sewer pipe cleaning and sewage discharge,construction site drainage:water intake from rivers,ditches,and lakes for drought resistance,fire fighting,water supply,sea water extraction,explosion-proof areas,etc.

3.Product Features

1)The hydraulic power unit features both single and double circuits. And it can easily adjust to the oil supply and pressure required for your equipment;

2)It has a stable working state and low noise output;

3)All moving parts operate in a relatively closed hydraulic oil environment, which prevents dirt and debris from entering and causing damage.

4.Parameter Table

In addition to these products, if you have other parameters and performance requirements please contact us, we will provide you with non-standard product customization services.

Model	Hydraulic flow rate (L/min)	Pressure (bar)	Power (kW)	Hydraulic tank (L)	Weight（kg）
EHYP15	60-80	160	15	200	310
EHYP22-K	40-50	280	22	300	550
EHYP45	2*60-80	180	45	320	600

5.Working Principle of the Hydraulic Power Unit:

A hydraulic power unit (HPU) is a device that uses hydraulic energy to drive mechanical devices. It is widely used in hydraulic systems, especially in industrial applications requiring high-efficiency power transmission. Its main function is to provide a stable hydraulic power source, supplying energy to various devices in a hydraulic drive system (such as hydraulic motors and cylinders).
