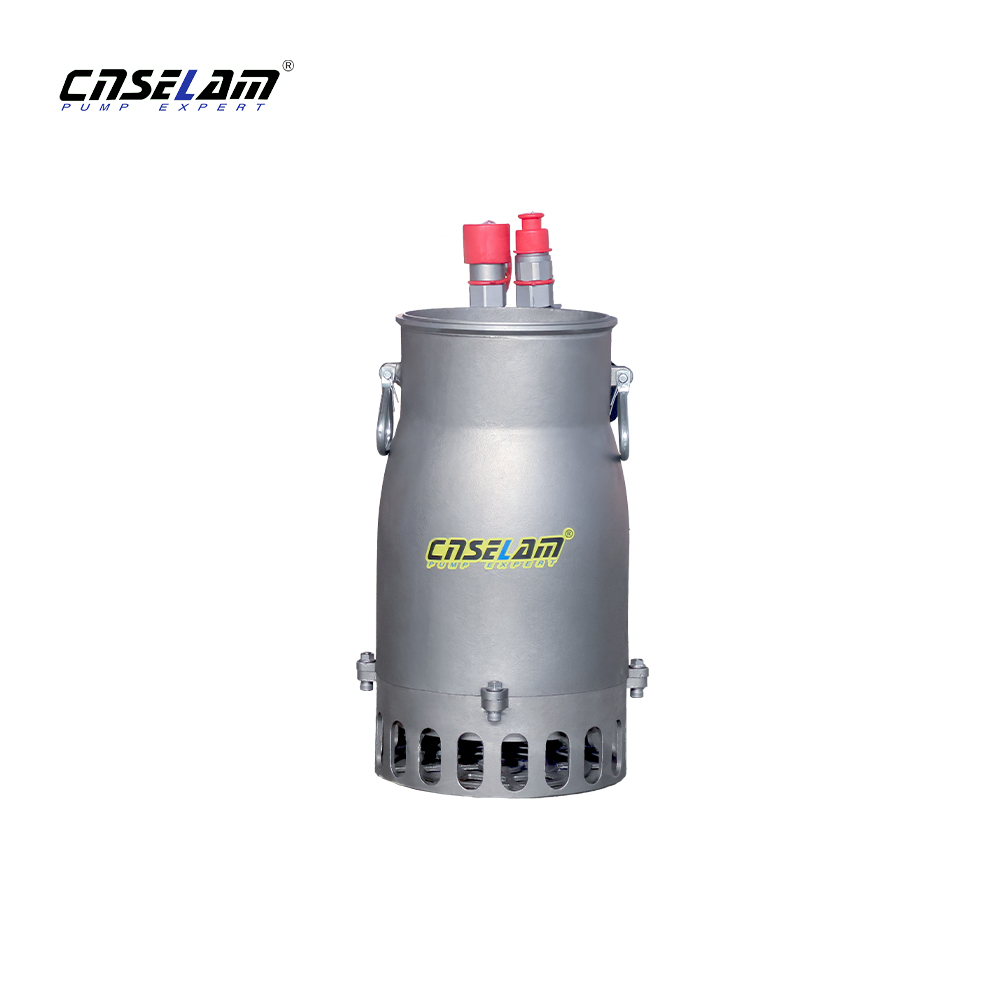

Portable Hydraulic Bottom Suction Pump HSQWP200D for Water Drainage
CNSELAM HSQWP series hydraulic axial flow pump is a type of hydraulic driven fluid equipment that is widely used in agricultural irrigation, urban drainage, power industry and other fields. It relies on the force generated by the blades of the rotating impeller on the liquid to transport the liquid along the axial. Hydraulic axial flow pumps have a variety of installation methods, including vertical, horizontal, oblique and cross-flow types, to meet the needs of different occasions.
Hydraulic axial flow pump is a type of fluid machinery that is widely used in agricultural irrigation, urban drainage, power industry and other fields. It relies on the force generated by the blades of the rotating impeller on the liquid to transport the liquid along the axis. Hydraulic axial flow pumps have a variety of installation methods, including vertical, horizontal, oblique and cross-flow types, to meet the needs of different occasions.
2. Fields of product application
Municipal emergency repair and drainage,urban flood control and drainage,inspection well and sewer pipe cleaning and sewage discharge,construction site drainage:water intake from rivers,ditches,and lakes for drought resistance,fire fighting,water supply,sea water extraction,explosion-proof areas,etc.
3. Product Features
Hydraulic axial flow pumps adopt axial flow or semi-open design and are characterized by high flow rates. Compared with other pump types, hydraulic axial flow pumps are small in size, can provide greater flow, have a high impurity passing rate, and can greatly reduce the pump pressure and power consumption of the hydraulic system.
1)Due to the axial propulsion characteristics of the hydraulic axial flow pump impeller, its outlet diameter is larger than the inlet diameter, so the angle or bending of the liquid when passing through the pump can be reduced, thereby improving the efficiency of the pump and reducing the pressure difference and noise of the pump.
2)The axial thrust impeller structure of the hydraulic axial flow pump can greatly improve the efficiency of the pump and reduce energy consumption. In terms of repair and maintenance, hydraulic axial flow pumps save time and effort and reduce usage costs.
3)The pump is equipped with hydraulic quick connectors for plug-and-play use.
4.Parameter Table
In addition to these products, if you have other parameters and performance requirements please contact us, we will provide you with non-standard product customization services.
Model
Flow rate(m³/h)
Head(m)
Outlet diameter(inch)
Pressure(bar)
Hydraulic flow rate(L/min)
HSQWP150D
250-300
18
6
172
50-60
HSQWP200B
0-550
10
8
172
60-80
HSQWP200D
0-600
15
8
172
60-80
HSQWP200Z
0-600
10
8
172
60-80
HSQWP300
1000-1200
8
12
190
160-180
HSQWP400
1800-2750
3.67-10.04
16
200-330
250-350
HSQWP500
1890-3570
3.53-9.85
20
200-330
300-400
5.FAQ
Q1: What is the working principle of a hydraulic bottom-suction pump?
A1: Hydraulic bottom-suction pumps are driven by a hydraulic system. Utilizing a bottom-suction design, they can extract water from deeper water layers. They provide stable power through hydraulic pressure, avoiding air blockage and dry-running problems that can occur with traditional pumps, ensuring continuous and efficient operation.
Q2: What are the maintenance and care precautions for hydraulic bottom-suction pumps?
A2: Hydraulic bottom-suction pumps require regular inspection of the pump body and hydraulic system to ensure there are no leaks or damage. It is recommended to check the hydraulic oil level and quality monthly and clean debris from the pump inlet to prevent blockage. Additionally, regularly check the motor or drive system to ensure normal operation.
Q3: What is the service life of a hydraulic bottom-suction pump?
A3: The service life of a hydraulic bottom suction pump typically depends on the operating environment, maintenance conditions, and pump load. Under normal use and good maintenance, a hydraulic bottom suction pump can last for more than 5 years. To extend the pump’s service life, regular maintenance and timely replacement of worn parts are recommended.
Q4: Can a hydraulic bottom suction pump operate normally in high or low temperature environments?
A4: The operating temperature range of a hydraulic bottom suction pump is typically -10°C to +60°C. If used in extreme temperature environments, it is necessary to ensure that the viscosity of the hydraulic oil adapts to temperature changes and to regularly check the operating condition of the pump body and hydraulic system. When used at extremely low or high temperatures, additional thermal protection or cooling systems may be required.
